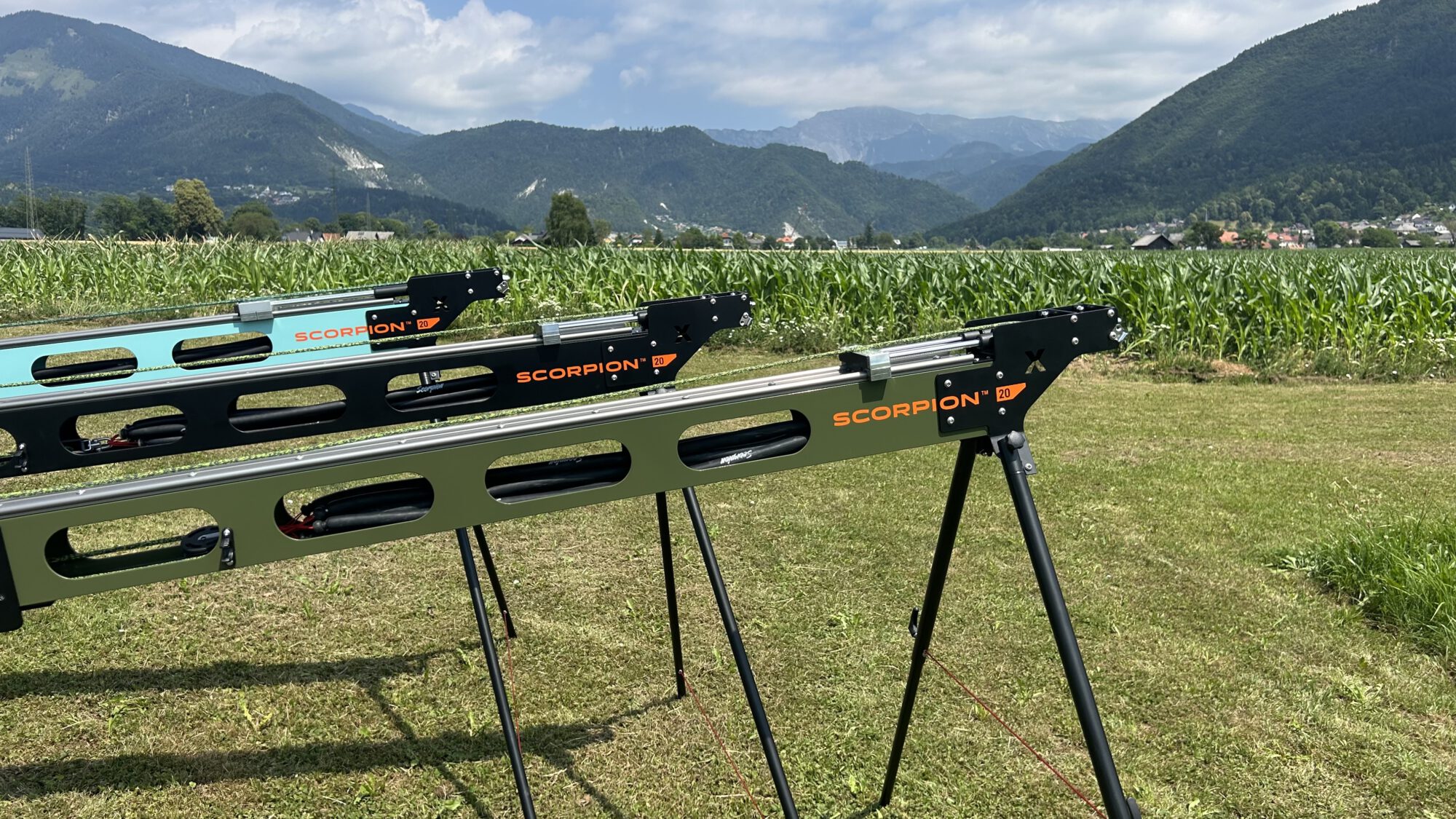

SCORPION™ LAUNCHER CUTTING-EDGE AERODYNAMIC PRINCIPLES

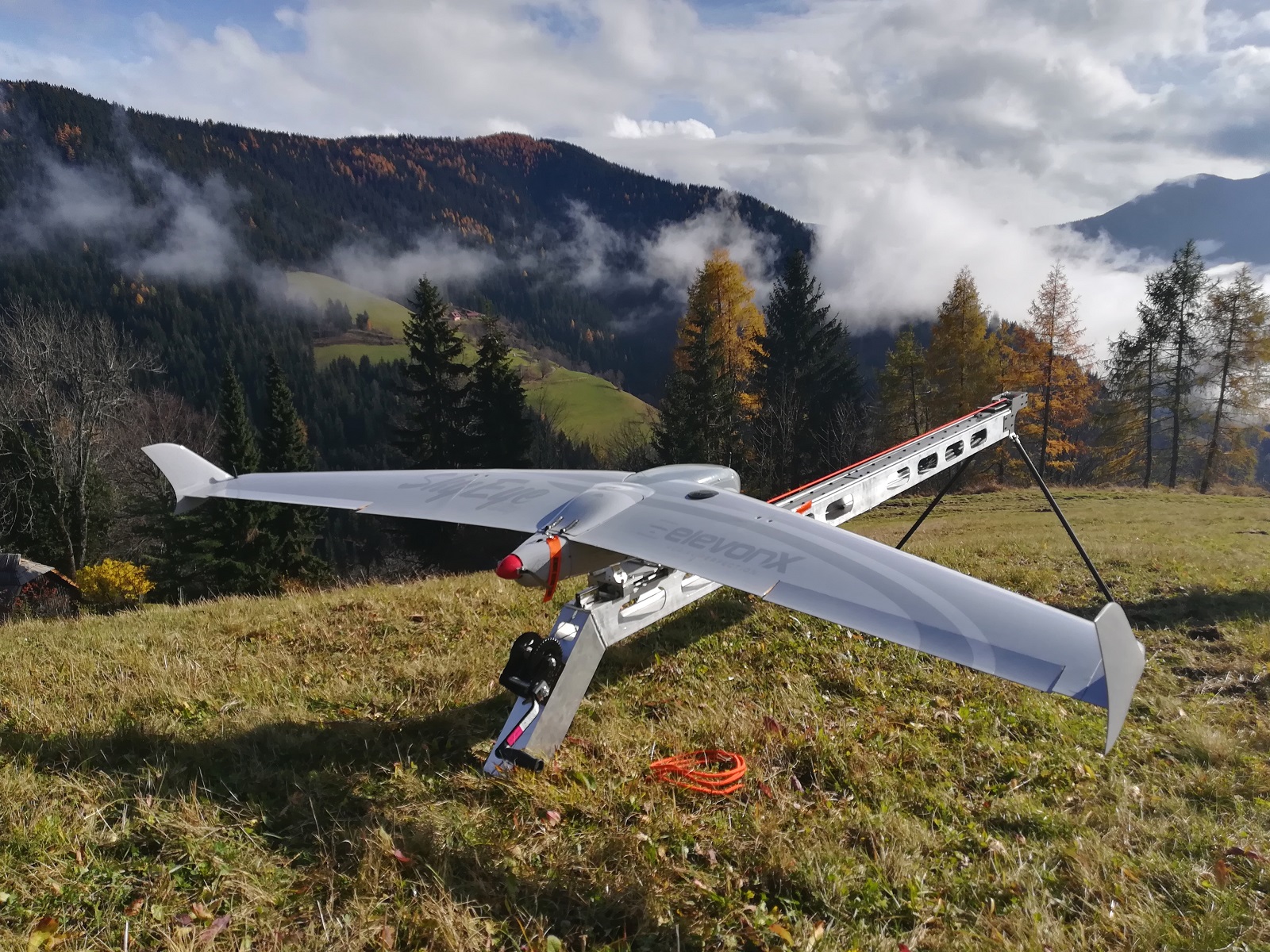

In the realm of unmanned aerial vehicles (UAVs), the significance of the launch system is on par with the UAV itself. After years of research and development, ElevonX Scorpion 2.0 and Scorpion 4.0 are transforming the methodology of drone deployment into the atmosphere.
Our launchers are indispensable for a wide array of operations, from surveillance to research, ensuring that your endeavors are not only successful but also reach unprecedented levels of excellence. With the Scorpion™ , you’re not just equipped – you’re empowered!
MAIN FEATURES
Compatible with all drones and available in two sizes:
Scorpion™ 2.0 dimension 3.2m
Scorpion™ 4.0 dimension 4.6m
Impressive launch energy up to:
2.2 kJ / Scorpion™ 2.0
4.0 kJ / Scorpion™ 4.0
A consistent launch velocity with a margin of error within 0.2 m/s
Maximum take-off weight:
12 kg / Scorpion™ 2.0
18 kg / Scorpion™ 4.0
Optionally equipped with a electric winch 12V. Car socket compatible.
The operating temperature range from -20 °C to +45 °C
DESIGN
The simplicity of its assembly and usage renders it a perfect fit for both commercial and investigative endeavors, where promptness, precision, and safety are paramount. The adaptability of the ElevonX catapults shines through their modifiable settings, providing a customizable launching experience to accommodate the diverse requirements of various UAV designs.

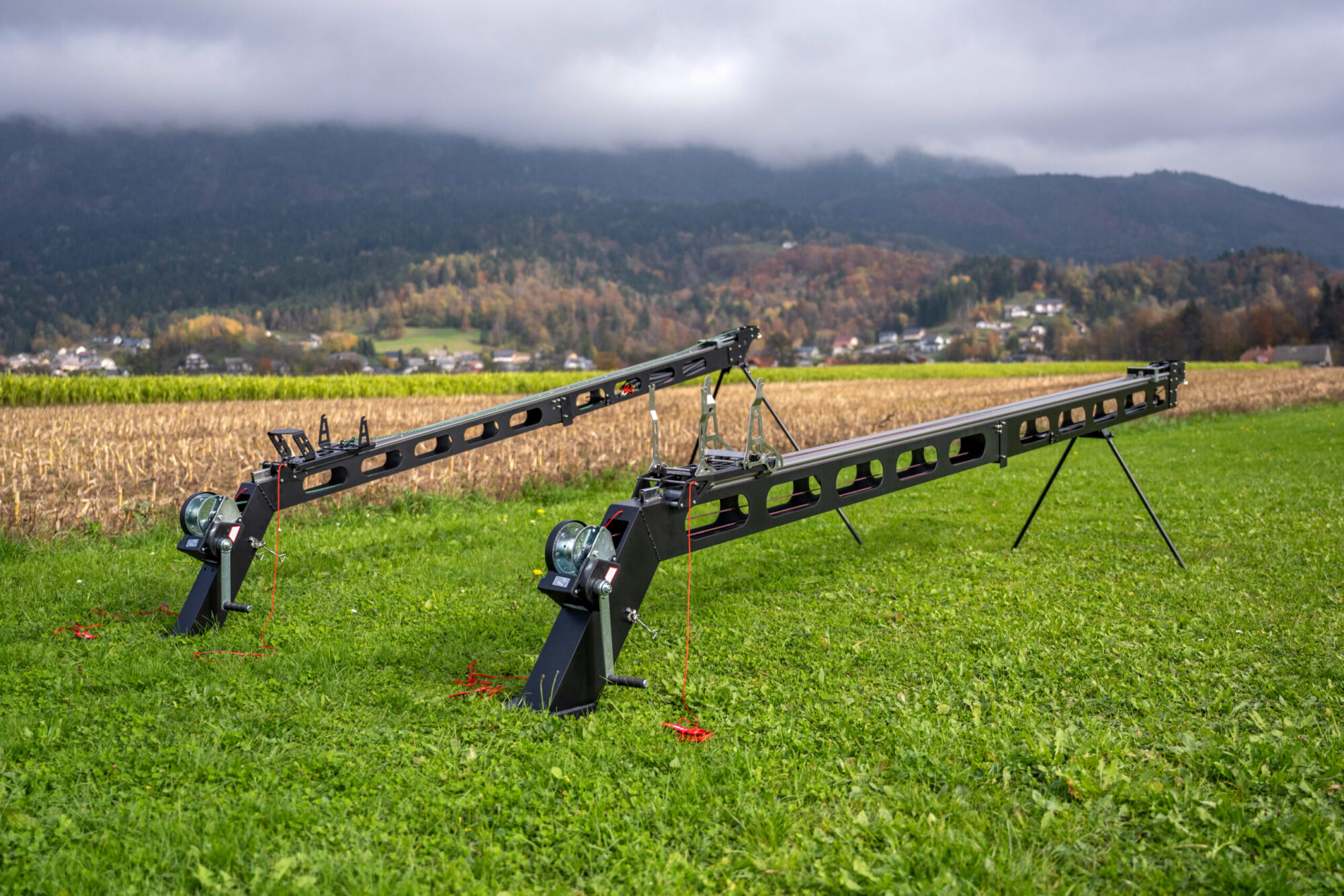

Portable UAV launch technology
Customization is paramount in the UAV industry, and ElevonX excels in this aspect. Our launch systems feature a carriage and foldable arms that are engineered for swift modification to suit any UAV platform. In need of a bespoke adaptor? ElevonX has the capability to design and precision machine an adaptor, tailored to your precise requirements. We guarantee a perfect fit for your UAV on the Scorpion™.
Control and safety
The Scorpion features multiple safety measures for a secure launch, including a foldable adapter to protect drone wings, securely housed rubber bands, a reliable release mechanism, and a safety pin to prevent accidental activation. Every detail is designed for operator confidence. An optional 12V electric winch, car socket compatible, tightens the launcher to full power in about 60 seconds.
Flexibility
The Scorpion’s foldable design fits into a transport box, allowing two people to carry it to remote areas. It assembles quickly for immediate use. Built from CNC-machined aluminum and stainless steel with a powder-coated finish, it ensures durability and weather resistance for reliable field performance.
After years of research and development, ElevonX Scorpion™ 2.0 and Scorpion™ 4.0 are transforming the methodology of drone deployment into the atmosphere.
